Check Valve Refurbishment

Check Valves lend themselves to easy upgrade. By replacing disc, tail link, shaft bearing, stuffing box assemblies along with rockshaft and gaskets, valves can be brought back to near new condition. Air actuators require only a seal kit with a spring.

When ordering refurbishment services be sure to give all the data on the valve reference plate, the number of the sectional illustration, and piece list forming part of this bulletin. Also, the name and number of the parts required as numbered and described.

Key Check Valve parts inspected to original specifications include:

1. Body integrity
2. Disc seat
3. Body seat
4. Tail link
5. Oil / Air cylinder
6. Rockshaft

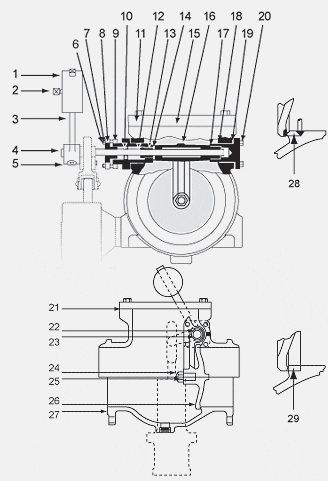

Check Valve Parts List – Reference Purposes Only

1 DISC WEIGHT
2 SETSCREW
3 WEIGHT LEVER
4 ROCKSHAFT 5 SETSCREW
6 STUD
7 NUT
8 GLAND
9 STUFFING BOX
10 SEAL RING
11 CAPSCREW
12 PACKING
13 PACKING RING
14 THRUST WASHER
15 COVER
16 TAIL LINK
17 BUSHING
18 SHAFT BEARING
19 GASKET
20 CAPSCREW
21 GASKET
22 SETSCREW
23 KEY
24 HEX NUT
25 COTTER PIN
26 DISC
27 BODY
28 SEAT
29 SEAT
