Simplex Heaters

Principle of Operation of Simplex Heaters

Fig. 340 Simplex Continuous Pipeline Steam Jet Heater combines liquid under pressure with steam at a higher pressure. Pressurized liquid enters the heater and flows through an in-line perforated combining tube concentric to the diffuser. Steam enters the heater and passes into the combining tube, and intimately mixes with the liquid in the tube and venturi. The steam completely condenses and heats the liquid. The mixture discharges at no loss in liquid pressure.

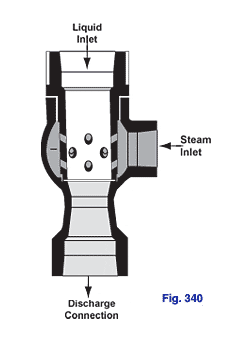

Figure 340 Simplex Pipeline Heater with liquid and steam inlets

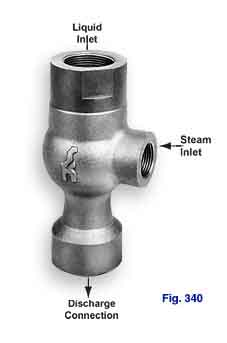

Figure 340 Simplex Pipeline Heater for heating of process liquids by direct steam injection

The Fig. 340 Simplex Continuous Pipeline Steam Jet Heater is a simple, yet efficient device for low-cost, in-line heating of process liquid by direct steam injection.The straight through in-line design minimizes clogging. Simplex Continuous Pipeline Steam Jet Heaters have a low initial cost, no moving parts, are easy to install and require little or no maintenance.

  • Sulphur melters.
  • Heating soup in-line before blending.
  • In chemical plants – preheating process line before entering reactor vessel.
