Ejector Venturi Gas Scrubber

Principle of Operation of Ejector Venturi Gas Scrubbers

Fig. 7010 Ejector Venturi Gas Scrubber are very effective at removing noxious gases, particulates, odors, fumes, and dusts from gas streams. Particulate contaminants are removed through impaction by the high-velocity spray of scrubbing liquid. Gases and odors are eliminated through absorption and/or chemical reaction between the gases and scrubbing liquid. When properly matched to the application, these scrubbers, by their nature, are better able to cope with the high temperatures, heavy contaminant loads, and corrosive conditions often encountered.

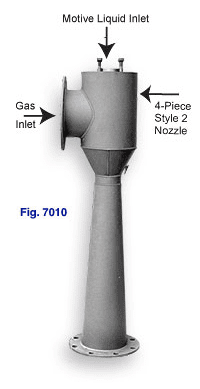

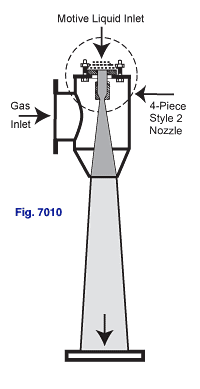

Figure 7010 Ejector-Venturi Scrubber with 4-piece nozzle
Figure 7010 Ejector-Venturi Fabricated Steel Gas Scrubber
Ejector-Venturi Scrubber molded nozzle
12-inch Titanium Figure 7010 Ejector-Venturi Scrubber with spray nozzle

12-inch Fig. 7010 Ejector-Venturi Gas Scrubber with Titanium (SB-265 Gr.2) spray nozzle/spiral Gas Inlet: 12” Gas Outlet: 12” Motive Fluid Inlet: 3” Material: Titanium (SB-265 Gr.2) Design Pressure: 150 psig Design Temperature: 250 deg. F

Fig. 7010 Ejector Venturi Gas Scrubber offer the following competitive advantages: low initial cost, low energy requirements, simple design with no moving parts which means low maintenance, continuous operation (as opposed to bag houses and precipitators), no electrical requirements, simultaneous gas absorption, and particulate scrubbing. Fig. 7010 Ejector-Venturi Gas Scrubber most often operate with a pressure rise or draft. This serves a dual purpose: to boost the pressure of the gas and to clean the gas at the same time.

  • Ammonia scrubbing.
  • Chlorine gas scrubbing and HCI gas scrubbing.
  • Sulfur dioxide scrubbing.
  • Particulate removal.
