Three-Way Valves

Principle of Operation of Three-Way Valves

Fig. 8508-MO Three-Way Valves provide a convenient, economical means of diverting flow from one pipeline to another. They are often used in bypass arrangements in steam generating plants and process applications where they can save users thousands of dollars by eliminating conventional gate valves, bypass accessories and custom fabrications.

Figure 8508-MO Three-Way Bypass Valve offset body design

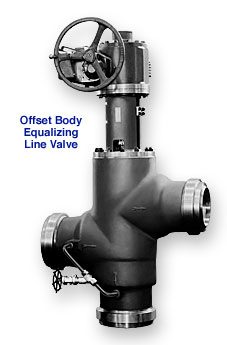

Figure 8508-MO Three-Way Bypass Valve offset body equalizing line valve

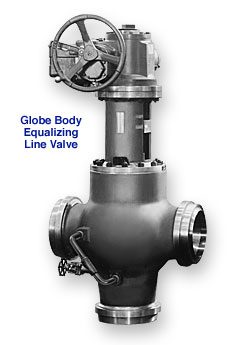

Figure 8508-MO Three-Way Bypass Valve globe body equalizing line valve

Fig. 8508-MO Three-Way Valves are designed to handle high pressure applications such as boiler feedwater service in steam power plants. All valves can be serviced in the field without removing them from the pipeline. Replaces two gate valves, one tee fitting, and eliminates four welded connections.

  • Used in high pressure feedwater heater bypass.
Three-Way Valve used in feedwater heater bypass
Three-Way Valve Used in Feedwater Heater Bypass
Replacing two gate valves, one tee fitting, and eliminates four welded connections
