Discover the Power of Sparger Nozzles for Effective Tank Heating

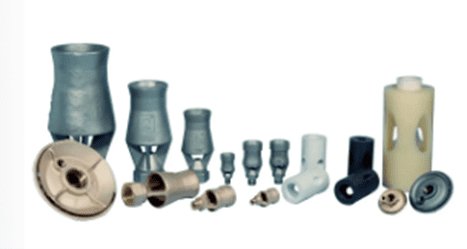

S&K Sparger Nozzles use steam to mix two materials, heat a liquid, or move/pump liquids or solids. Our Sparger Nozzles are designed to be submerged in the liquid to be heated for uniform heating and agitation over a large shallow tank area.  S&K Sparger Nozzles are available in stock or custom units in a variety of materials to suit your application requirements.  Fill out the quote form for Sparger Nozzles and revolutionize your tank heating process today.

"*" indicates required fields

Name*
This field is for validation purposes and should be left unchanged.

Sparger Nozzles belong to the category of “open tank heaters” that utilize high-velocity steam flowing through a nozzle to entrain suction liquids. Within the diffuser, the condensing steam and heated liquid mix thoroughly, thanks to the agitation occurring in this section. This process results in a quiet operation, as the diffuser breaks up the steam bubbles while enhancing circulation through high discharge velocity. It is recommended to use a steam Sparger nozzle when any of the following conditions are met.

Sparger Nozzles are designed for submersion in the liquid to be heated. Use them when starting heating from a shallow level is desired.

Sparger Nozzles also excel when uniform agitation and heating over a large, shallow tank area is required in your industrial process.

For steam pressure below 20 psi the 3/8” size is preferable.  Determination as to which size nozzle to be used depends on the number of units required to give even distribution over the tank.

For installations where solids are encountered, sizes 1-1/2”, 2”, and 3” sizes are recommended. These units are used instead of drilled holes in sparger pipe, requiring fewer pipe openings and can improve circulation; providing uniform heating.

Looking to optimize your tank heating processes?  Fill out the form on this page for a quote on steam sparger nozzles and tank heaters.

When it comes to using reliable Sparger Nozzles from Schutte & Koerting, you can expect the following benefits:

Fig. 314 Sparger Nozzles – Male Threads

Sparger Nozzles provide excellent agitation, ensuring efficient mixing and heating of liquids in your tanks.

Figure 314 Sparger Nozzle - Female Threads

By utilizing Sparger Nozzles, you can eliminate the need for costly and maintenance-intensive mechanical agitators.

Option to be theaded or welded into tapped distribution piping. Stocked in cast iron, bronze, stainless steel and other machinable material for corrosive conditions.  Custom sizes also available.

If you’re in search of a reliable and efficient solution for your tank heating applications, look no further than S&K’s Sparger Nozzles and Tank Heaters.

These Sparger Nozzles provide thorough tank mixing of steam and liquid and breaks up steam bubbles to provide quiet operation.  The temperature of the liquid can be thermostatically controlled if the steam pressure is not throttled below quiet operating levels.  If the anticipated load variation will not reduce the pressure drop across the nozzle, a throttle type controller may be used.  If conditions require shutting off the steam, a snap-acting on-and-off control should be applied.

Take the first step toward enhancing your tank heating process by filling out the form below to request a quote. Our team at Schutte & Koerting is ready to provide you with expertise and support.
